Mahsulot turlari: Shlangi flanesli SAE adapter qismlari 1CFL9 1DFS9-W
Sanoat standartlari: SAE J518, ISO 6162 DIN 2353, ISO 8434-1
E F uslubiga ulanishi: 90 ° TURING / SAE FLANGE
Shakl: tirsak, tekis, blok va boshqalar.
Ish bosimi darajasi: SAE kodi 61 dan 31,5 Mpa gacha; SAE kodi 62 40 Mpa.
Armatura materiallari: guruch; Uglerod po'lati; Zanglamaydigan po'lat
Ilova: Qishloq xo'jaligi uskunalari, avtomobilsozlik, kimyoviy uzatish, qurilish uskunalari, yonilg'i quyish, gidravlik, ishlab chiqarish uskunalari, dengiz, materiallarga ishlov berish, mobil uskunalar, neft koni, qadoqlash, transport.

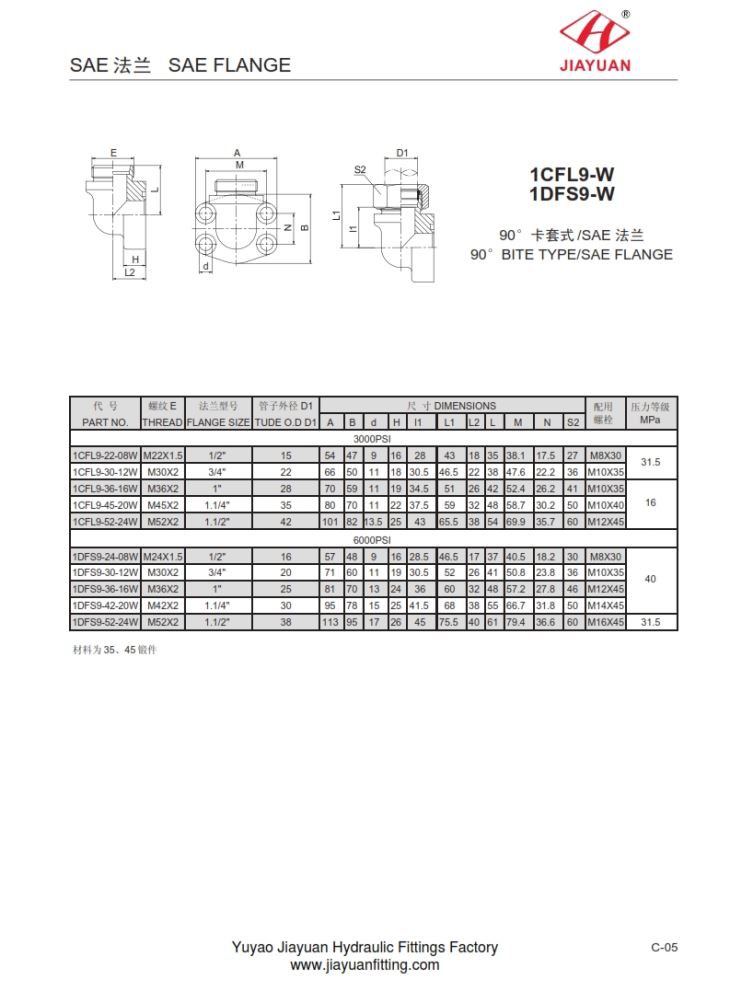

1CFL9 1DFS9-W 90 luqma turi SAE flanes O'lcham o'lchamlari jadvali quyidagicha
YO'Q. | E XAVF | FLANGE SIZE | D1 TUDING OD D1 | O'LCHAMLARI | MPa | |||||||||||
A | B | d | H | l1 | L1 | L2 | L | M | N | S2 | ||||||
3000PSI | ||||||||||||||||
1CFL9-22-08W | M22X1.5 | 1/2 " | 15 | 54 | 47 | 9 | 16 | 28 | 43 | 18 | 35 | 38.1 | 17.5 | 27 | M8X30 | 31.5 |
1CFL9-30-12W | M30X2 | 3/4 " | 22 | 66 | 50 ga teng | 11 | 18 | 30.5 | 46.5 | 22 | 38 | 47.6 | 22.2 | 36 | M10X35 | |
1CFL9-36-16W | M36X2 | 1 " | 28 | 70 | 59 | 11 | 19 | 34.5 | 51 | 26 | 42 | 52.4 | 26.2 | 41 | M10X35 | 16 |
1CFL9-45-20W | M45X2 | 1.1 / 4 " | 35 | 80 | 70 | 11 | 22 | 37.5 | 59 | 32 | 48 | 58.7 | 30.2 | 50 ga teng | M10X40 | |
1CFL9-52-24W | M52X2 | 1.1 / 2 " | 42 | 101 | 82 | 13.5 | 25 | 43 | 65.5 | 38 | 54 | 69.9 | 35.7 | 60 | M12X45 | |
6000PSI | ||||||||||||||||
1DFS9-24-08W | M24X1.5 | 1/2 " | 16 | 57 | 48 | 9 | 16 | 28.5 | 46.5 | 17 | 37 | 40.5 | 18.2 | 30 | M8X30 | 40 |
1DFS9-30-12W | M30X2 | 3/4 " | 20 | 71 | 60 | 11 | 19 | 30.5 | 52 | 26 | 41 | 50,8 | 23.8 | 36 | M10X35 | |
1DFS9-36-16W | M36X2 | 1 " | 25 | 81 | 70 | 13 | 24 | 36 | 60 | 32 | 48 | 57.2 | 27,8 | 46 | M12X45 | |
1DFS9-42-20W | M42X2 | 1.1 / 4 " | 30 | 95 | 78 | 15 | 25 | 41.5 | 68 | 38 | 55 | 66,7 | 31.8 | 50 ga teng | M14X45 | |
1DFS9-52-24W | M52X2 | 1.1 / 2 " | 38 | 113 | 95 | 17 | 26 | 45 | 75.5 | 40 | 61 | 79.4 | 36.6 | 60 | M16X45 | 31.5 |
