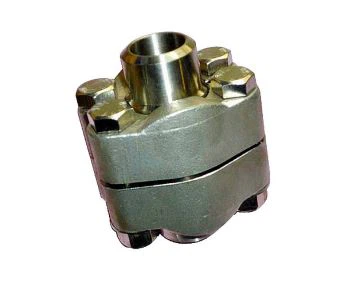

Shlangi suyuqlik quvvati kvadratining gardish qisqichlarini ulash
Metrik kvadrat gidravlik gardish moslamalari ISO 6164 standartlariga muvofiq 4 ta murvatli gardish o'lchovidir. Shlangi qo'llanmalar uchun kvadrat, naqshli blokli troyniklar mobil va sanoat quvurlari uskunalarida dvigatel, nasos, raz'em va boshqalarni muhrlashi mumkin.
ISO kvadrat gardish qisqichining o'lchami SAE J518 standart o'lchamlari jadvalidan farq qiladi, to'rtta vintli bitta parcha gardish ulanishlari 42 MPa yuqori bosim uchun ishlatiladi. DN 25 dan 80 gacha bo'lgan o'lcham.
Ish bosimi gardish qisqichlari, gardishli bosh, vint va portning temir moddasiga asoslangan. minums
Kvadrat flanjli ulanish moslamasini yig'ish turlari quyidagicha:
Payvand choki bilan flanesli qo'shma birikma
Portga ulangan flanesli ulanish
ISO kvadrat flanesli ulanish tizimlarining tarkibiy qismlari:
Kvadrat gardish qisqichlari
Kvadratli gardish adapterlari (yivli yoki oluksiz gardish kallagi
O-ring muhri
Vida
Kvadrat gardish qisqichlari o'lchamlari
Partiya raqami | Asosiy o'lcham | d1 | d2 | d3 | d4 | L4 | L5 | L6 | L7 | c |
FCS-25 | 25 | 62 | 11 | 38.9 | 48.4 | 65 | 43.8 | 25 | 8.5 | 10 |
FCS-32 | 32 | 73 | 13 | 44.6 | 54.8 | 75 | 51.6 | 30 | 9.3 | 12 |
FCS-38 | 38 | 85 | 17 | 51.6 | 64.3 | 90 | 60.1 | 36 | 11.5 | 14 |
FCS-51 | 51 | 98 | 17 | 67.6 | 80.2 | 100 | 69.3 | 40 | 11.5 | 16 |
FCS-56 | 56 | 118 | 21 | 80.5 | 95 | 120 | 83.4 | 50 | 15.5 | 20 |
FCS-63 | 63 | 145 | 21 | 90.5 | 111 | 150 | 102.5 | 52 | 16.1 | 20 |
FCS-70 | 70 | 160 | 25 | 102.5 | 120 | 160 | 113.1 | 60 | 17.5 | 20 |
FCS-80 | 80 | 175 | 31 | 114.5 | 136 | 180 | 123.7 | 70 | 21 | 24 |
Kvadrat gardishning maksimal ish bosimiAssambleya
Kvadrat gardish porti uchun port o'lchamlari
Asosiy o'lcham | d1 | d5 | L3 | L5 | L8 | L12 | r | t1 | izoh |
25 | 62 | 11 | 15.5 | 43.8 | 68 | 65.3 | 10 | M10x1.5 | |
32 | 73 | 13 | 20.5 | 51.6 | 80 | 75.3 | 12 | M12x1.75 | |
38 | 85 | 17 | 24.5 | 60.1 | 95 | 90.3 | 14 | M16x2 | |
51 | 98 | 17 | 24.5 | 69.3 | 105 | 100.3 | 16 | M16x2 | |
56 | 118 | 21 | 31 | 83.4 | 125 | 120.3 | 20 | M20x2.5 | |
63 | 145 | 21 | 39 | 102.5 | 155 | 150.5 | 20 | M24x3 | |
70 | 160 | 25 | 41 | 113.1 | 165 | 160.5 | 20 | M24x3 |
Ushbu o'lchov faqat ma'lumot uchun mo'ljallangan.
ISO 724 ga muvofiq ip, qo'pol pog'onali ISO 261.
Vida va vida uzunligi har xil po'lat uchun kakulyatsiya qilingan,
Kvadrat gardishning bosh o'lchamlari
Partiya raqami | Asosiy o'lcham | d6 max | d7 max | d8 max | d9 | d10 | L9 | L10 | L11 | L13 |
FCSH-25 | 25 | 38 | 23 | 25 | 39.2 | 47.6 | 27 | 9.5 | 2.75 | 5.4 |
FCSH-32 | 32 | 44 | 29 | 30 | 43.9 | 54 | 32 | 10.3 | 2.75 | 5.4 |
FCSH-38 | 38 | 51 | 35 | 37 | 53.2 | 63.5 | 38 | 12.6 | 2.75 | 5.4 |
FCSH-51 | 51 | 67 | 45 | 47 | 65.8 | 79.4 | 42 | 12.6 | 4.25 | 7.7 |
FCSH-56 | 56 | 80 | 54 | 56 | 78.3 | 94.2 | 52 | 16.5 | 4.25 | 7.7 |
FCSH-63 | 63 | 90 | 59 | 60 | 84.5 | 110 | 56 | 18 | 4.25 | 7.7 |
FCSH-70 | 70 | 102 | 66 | 68 | 93.8 | 119 | 65 | 20 | 4.25 | 7.7 |
FCSH-80 | 80 | 114 | 74 | 76 | 97 | 135 | 75 | 23.5 | 4.25 | 7.7 |
Eslatma:
Port uchun har xil ish bosimini ushlab turish uchun turli xil materiallar tanlanadi.
