BSP quvur qismlarining o'lchamlari va katalogi turli xil etkazib beruvchilardan bir xil.
Materiallar zanglamaydigan po'lat, guruch va plastmassa kabi quvur qismlarining qismlari.
Buyuk Britaniya va AQSh BSPP tishli armatura asboblari quvurlari armatura va sanoat quvurlari uchun armatura.
BSP trubkasini payvand choklariga payvandlash moslamalari, NPT erkak, SAE ORB, BSPT erkak, ORFS erkak, DIN 2353 naycha ulagichi, metrik o-ring va boshqalar.
To'g'ri, tirsak, tee, xoch, reducer kabi BSPP quvur adapterining shakli.
Shuningdek, biz 2 dyuymgacha bsp armatura bilan ta'minlay olamiz.

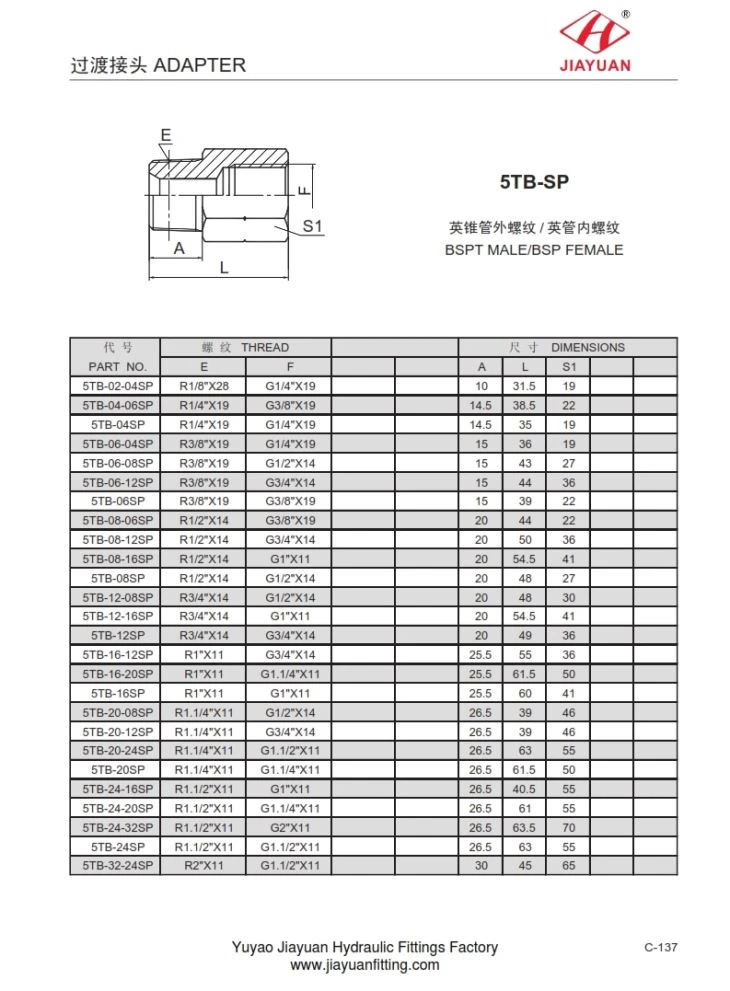

5TB-SP BSPT MALE / BSP FEMALE quvur ulagichlarining o'lchamlari jadvali quyidagicha:
YO'Q. | XAVF | O'LCHAMLARI | |||||
E | F | A | L | S1 | |||
5TB-02-04SP | R1 / 8 "X28 | G1 / 4 "X19 | 10 | 31.5 | 19 | ||
5TB-04-06SP | R1 / 4 "X19 | G3 / 8 "X19 | 14.5 | 38.5 | 22 | ||
5TB-04SP | R1 / 4 "X19 | G1 / 4 "X19 | 14.5 | 35 | 19 | ||
5TB-06-04SP | R3 / 8 "X19 | G1 / 4 "X19 | 15 | 36 | 19 | ||
5TB-06-08SP | R3 / 8 "X19 | G1 / 2 "X14 | 15 | 43 | 27 | ||
5TB-06-12SP | R3 / 8 "X19 | G3 / 4 "X14 | 15 | 44 | 36 | ||
5TB-06SP | R3 / 8 "X19 | G3 / 8 "X19 | 15 | 39 | 22 | ||
5TB-08-06SP | R1 / 2 "X14 | G3 / 8 "X19 | 20 | 44 | 22 | ||
5TB-08-12SP | R1 / 2 "X14 | G3 / 4 "X14 | 20 | 50 ga teng | 36 | ||
5TB-08-16SP | R1 / 2 "X14 | G1 "X11 | 20 | 54.5 | 41 | ||
5TB-08SP | R1 / 2 "X14 | G1 / 2 "X14 | 20 | 48 | 27 | ||
5TB-12-08SP | R3 / 4 "X14 | G1 / 2 "X14 | 20 | 48 | 30 | ||
5TB-12-16SP | R3 / 4 "X14 | G1 "X11 | 20 | 54.5 | 41 | ||
5TB-12SP | R3 / 4 "X14 | G3 / 4 "X14 | 20 | 49 | 36 | ||
5TB-16-12SP | R1 "X11 | G3 / 4 "X14 | 25.5 | 55 | 36 | ||
5TB-16-20SP | R1 "X11 | G1.1 / 4 "X11 | 25.5 | 61.5 | 50 ga teng | ||
5TB-16SP | R1 "X11 | G1 "X11 | 25.5 | 60 | 41 | ||
5TB-20-08SP | R1.1 / 4 "X11 | G1 / 2 "X14 | 26.5 | 39 | 46 | ||
5TB-20-12SP | R1.1 / 4 "X11 | G3 / 4 "X14 | 26.5 | 39 | 46 | ||
5TB-20-24SP | R1.1 / 4 "X11 | G1.1 / 2 "X11 | 26.5 | 63 | 55 | ||
5TB-20SP | R1.1 / 4 "X11 | G1.1 / 4 "X11 | 26.5 | 61.5 | 50 ga teng | ||
5TB-24-16SP | R1.1 / 2 "X11 | G1 "X11 | 26.5 | 40.5 | 55 | ||
5TB-24-20SP | R1.1 / 2 "X11 | G1.1 / 4 "X11 | 26.5 | 61 | 55 | ||
5TB-24-32SP | R1.1 / 2 "X11 | G2 "X11 | 26.5 | 63.5 | 70 | ||
5TB-24SP | R1.1 / 2 "X11 | G1.1 / 2 "X11 | 26.5 | 63 | 55 | ||
5TB-32-24SP | R2 "X11 | G1.1 / 2 "X11 | 30 | 45 | 65 | ||
