Mahsulot turlari: Metrik luqma turi naychali armatura - burama bog'laydigan quvur
Sanoat standartlari: DIN 2353
F-uslubiga ulanish: 24-burchakli konusning uchi, burama burama burama, payvandlangan / payvandlangan, arra, reduktor
Shakl: to'g'ri va boshqalar.
Ish bosimi: 16-63 Mpa
Armatura materiallari: guruch; Uglerod po'lati; Zanglamaydigan po'lat
Ilova: Qishloq xo'jaligi uskunalari, avtomobilsozlik, kimyoviy uzatish, qurilish uskunalari, yonilg'i quyish, gidravlik, ishlab chiqarish uskunalari, dengiz, materiallarga ishlov berish, mobil uskunalar, neft koni, qadoqlash, transport.

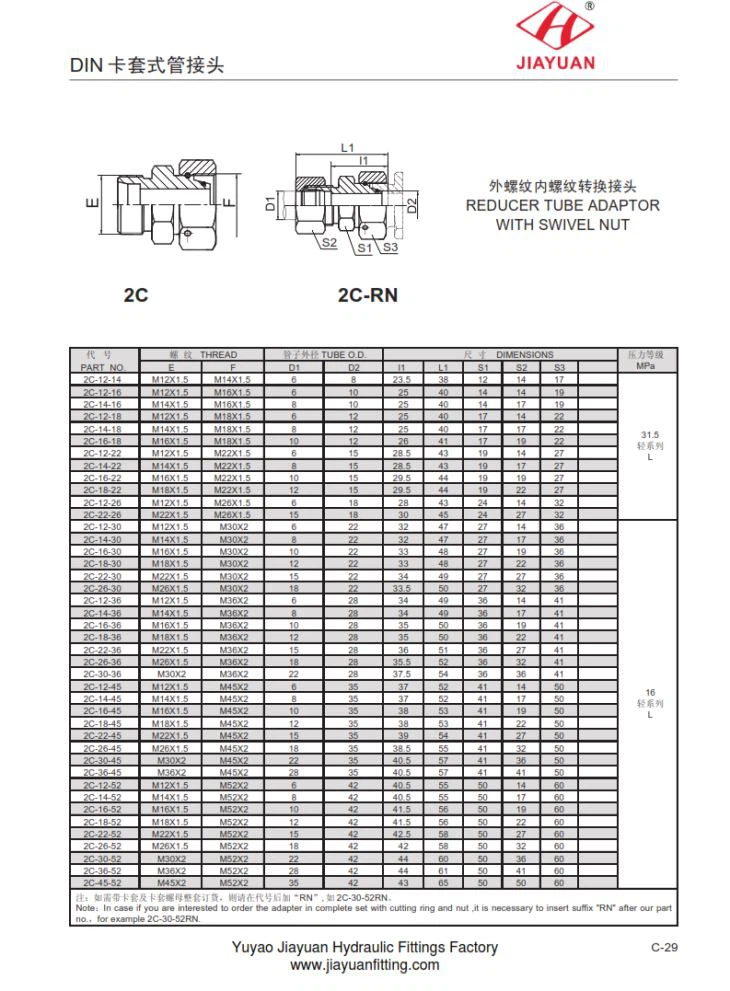

2C-RN reduktor naycha bilan adapter DIN2353 o'lchamlari jadval jadvali quyidagicha
YO'Q. BUYUK TUBE OD
E F D1 D2
2C-12-14 M12X1.5 M14X1.5 6 8
2C-12-16 M12X1.5 M16X1.5 6 10
2C-14-16 M14X1.5 M16X1.5 8 10
2C-12-18 M12X1.5 M18X1.5 6 12
2C-14-18 M14X1.5 M18X1.5 8 12
2C-16-18 M16X1.5 M18X1.5 10 12
2C-12-22 M12X1.5 M22X1.5 6 15
2C-14-22 M14X1.5 M22X1.5 8 15
2C-16-22 M16X1.5 M22X1.5 10 15
2C-18-22 M18X1.5 M22X1.5 12 15
2C-12-26 M12X1.5 M26X1.5 6 18
2C-22-26 M22X1.5 M26X1.5 15 18
2C-12-30 M12X1.5 M30X2 6 22
2C-14-30 M14X1.5 M30X2 8 22
2C-16-30 M16X1.5 M30X2 10 22
2C-18-30 M18X1.5 M30X2 12 22
2C-22-30 M22X1.5 M30X2 15 22
2C-26-30 M26X1.5 M30X2 18 22
2C-12-36 M12X1.5 M36X2 6 28
2C-14-36 M14X1.5 M36X2 8 28
2C-16-36 M16X1.5 M36X2 10 28
2C-18-36 M18X1.5 M36X2 12 28
2C-22-36 M22X1.5 M36X2 15 28
2C-26-36 M26X1.5 M36X2 18 28
2C-30-36 M30X2 M36X2 22 28
2C-12-45 M12X1.5 M45X2 6 35
2C-14-45 M14X1.5 M45X2 8 35
2C-16-45 M16X1.5 M45X2 10 35
2C-18-45 M18X1.5 M45X2 12 35
2C-22-45 M22X1.5 M45X2 15 35
2C-26-45 M26X1.5 M45X2 18 35
2C-30-45 M30X2 M45X2 22 35
2C-36-45 M36X2 M45X2 28 35
2C-12-52 M12X1.5 M52X2 6 42
2C-14-52 M14X1.5 M52X2 8 42
2C-16-52 M16X1.5 M52X2 10 42
2C-18-52 M18X1.5 M52X2 12 42
2C-22-52 M22X1.5 M52X2 15 42
2C-26-52 M26X1.5 M52X2 18 42
2C-30-52 M30X2 M52X2 22 42
2C-36-52 M36X2 M52X2 28 42
2C-45-52 M45X2 M52X2 35 42
