Ta'rif: Sozlanishi uchi erkak tishli pichoqni, u qulflangan yog ', yuvish vositasi, o-ring va ushlab turadigan halqadan iborat. JIC armatura po'lat quvurlarni, adapterlarni yoki shlangni ulash uchun 37 darajagacha metall yoki metall + o-rishta qoplamining standart uchi bo'lib, butlovchilarning to'g'ri yo'nalishini ta'minlash uchun moslashuvchan tirsak, Tee va Cross Fittingsga o'rnatiladi. U Portning oxiridan Portning barcha turlariga normal ulanish.
Aylanadigan shtutserlar bilan ishlash usuli: O-ring yoki O-ring + Retaining Ring orqali yopishtiruvchi qulflanadi, orqa yuvish vositasi bilan yig'iladi. Portni muhrlashning to'rtta standarti quyidagicha:
Metrik tish + O-ring + O-rishtani saqlab turuvchi ISO 9974 port
Metric thread + O-ring ISO 6149 porti
UN / UNF liniyasi + O-rishtasi ISO 11926 SAE J1926 ORB porti
BSPP iplari + O-ring + Retaining ring ISO 1179 / DIN 3852 port
BSPP oqim + O-ring BS 5380 port
Burst va davriy chidamlilik (impuls) testlari ISO 19879 ga muvofiq amalga oshiriladi.
Sozlanadigan UNF ipli + O-ring ISO 11926-2 / -3 standartining o'lchami biz bilan bog'laning.

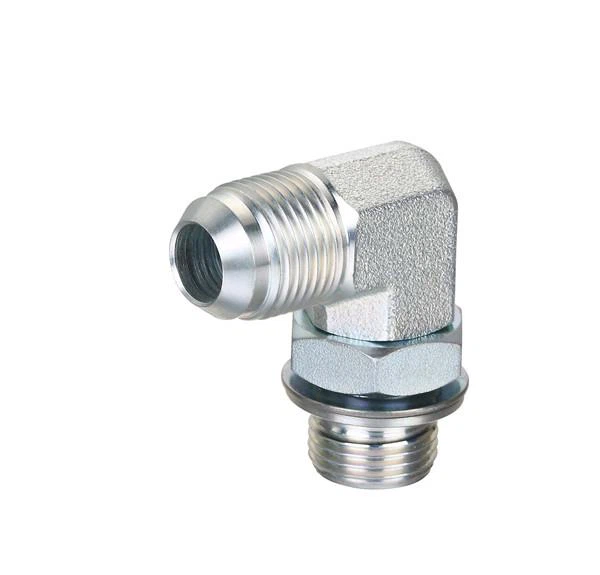

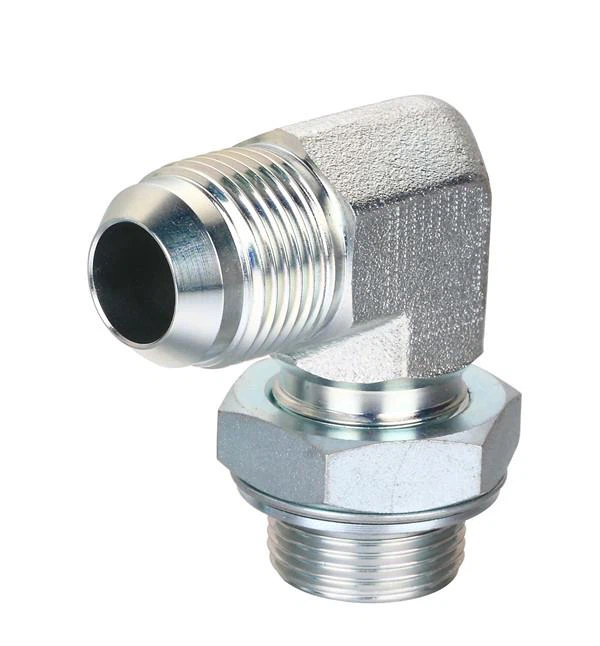

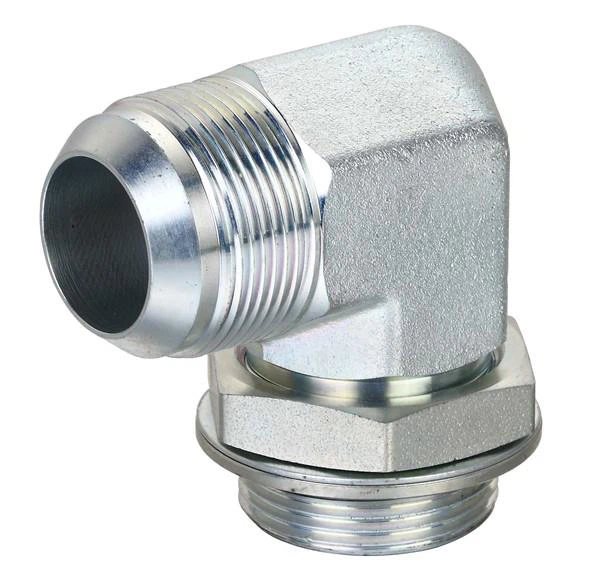

1. JIC moslamasining moslashuvchan tirsagi 1JG9-OG
37 ° burchak ostida. / BSPP O-ring + Retina ring
2. JIC moslashuvchan 45 ° burchakli 1JG4-OG tirsakkacha
37 ° burchak ostida. / BSPP O-ring + Retina ring
3. JIC moslamasi moslashuvchan tirsak1JH9-OG
37 ° burmali uchi. / Metrik O-ring + ISO 9974 yoki ISO 6149 Metrik O-rishtasi.
4. JIC moslamasi moslashuvchan 45 ° burchagi (JJ4-OG)
37 ° burmali uchi / Metrik O-ring + ISO 9974 yoki ISO 6149-3 Metrik O-rishtasi
5. JIC moslashuvchan tirgak 1JO9-OG
37 ° ilova qilingan. / SAE O-ring Boss ISO 11926-3
6. JIC moslamasi moslashuvchan 45 ° tirsak 1JO4-OG
37 ° ilova qilingan. / SAE O-ring Boss ISO 11926-3
