NPT quvur qismlarining o'lchamlari va katalogi turli xil etkazib beruvchilar tomonidan bir xil.
Materiallar zanglamaydigan po'lat, guruch va plastmassa kabi quvur qismlarining qismlari.
Buyuk Britaniya va AQSh BSPP tishli armatura asboblari quvurlari armatura va sanoat quvurlari uchun armatura.
NPT quvur qismlari rozetkaga payvandlash moslamalari, NPT erkak, SAE ORB, BSPT erkak, ORFS erkak, DIN 2353 naycha ulagichi, metrik o-ring va boshqalar.
To'g'ri, tirsak, tee, xoch, reducer kabi BSPP quvur adapterining shakli.

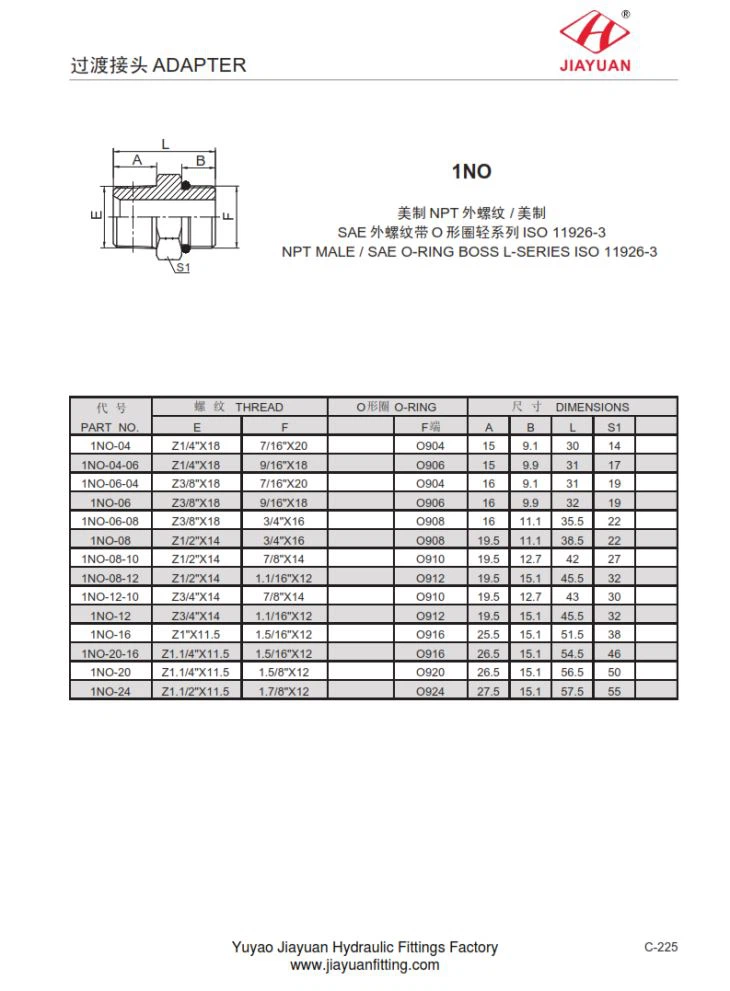

1NO NPT MALE / SAE O-RING BOSS L-SERIES ISO 11926-3 quvur ulagichlarining o'lcham jadvali quyidagicha:
PA RT N O | T HR EA D | O- RING | DIM E N S I O NS | ||||
E | F | F | A | B | L | S 1 | |
1N O- 04 | Z 1/4 " X 18 | 7/16 " X 20 | O 904 | 15 | 9.1 | 30 | 14 |
1N O- 04 - 06 | Z 1/4 " X 18 | 9/16 " X 18 | O 906 | 15 | 9.9 | 31 | 17 |
1N O- 06 - 04 | Z 3/8 " X 18 | 7/16 " X 20 | O 904 | 16 | 9.1 | 31 | 19 |
1N O- 06 | Z 3/8 " X 18 | 9/16 " X 18 | O 906 | 16 | 9.9 | 32 | 19 |
1N O- 06 - 08 | Z 3/8 " X 18 | 3/4 " X 16 | O 908 | 16 | 11.1 | 35.5 | 22 |
1N O- 08 | Z 1/2 " X 14 | 3/4 " X 16 | O 908 | 19.5 | 11.1 | 38.5 | 22 |
1N O- 08 - 10 | Z 1/2 " X 14 | 7/8 " X 14 | O 910 | 19.5 | 12.7 | 42 | 27 |
1N O- 08 - 12 | Z 1/2 " X 14 | 1.1 / 16 " X 12 | O 912 | 19.5 | 15.1 | 45.5 | 32 |
1N O- 12 - 10 | Z 3/4 " X 14 | 7/8 " X 14 | O 910 | 19.5 | 12.7 | 43 | 30 |
1N O- 12 | Z 3/4 " X 14 | 1.1 / 16 " X 12 | O 912 | 19.5 | 15.1 | 45.5 | 32 |
1N O- 16 | Z 1 " X 11.5 | 1,5 / 16 " X 12 | O 916 | 25.5 | 15.1 | 51.5 | 38 |
1N O- 20 - 16 | Z 1.1 / 4 " X 11.5 | 1,5 / 16 " X 12 | O 916 | 26.5 | 15.1 | 54.5 | 46 |
1N O- 20 | Z 1.1 / 4 " X 11.5 | 1,5 / 8 " X 12 | O 920 | 26.5 | 15.1 | 56.5 | 50 ga teng |
1N O- 24 | Z 1.1 / 2 " X 11.5 | 1.7 / 8 " X 12 | O 924 | 27.5 | 15.1 | 57.5 | 55 |
