E45 BSP erkak konusning BSP erkak o-halqasi
BSP armaturalari katalogi Buyuk Britaniyada, Irlandiyada, Kanada, AQShda keng tarqalgan.
Barcha BSP 60 konusning qismlari ISO 8434-6 standartiga teng BS5200 bilan izohlanadi.
BSPP ip o'lchov jadvalining o'lchamlari G 1/8, G1 / 4, G1 / 2, G3 / 4, G3 / 8, G5 / 8, G1, G1-1 / 4, G1-1 / 2, G2, G2- 1/2, G3 va boshqalar.
BSP - 55 daraja ip shaklidagi britaniyalik standart quvur.
BSPP mavzusi ISO 228 va AS 1722.2 standartlariga muvofiq keladi.
BSPP tsilindrni ko'plab muhrlash turlariga yo'naltiradi, masalan, BSPP 60 ° konusning o'rindiqqa ulagichi, yopishtirilgan muhr bilan BSPP porti, ED muhri bilan BSPP porti, BSPP oring + ushlab turuvchi halqa G turi, BSPP o-ring sozlanishi piyoz H turi, BSPP chiqib ketish yuzi. muhr B turi.
BSPP trubkasi moslash moslamalari BSPT erkak, ORFS erkak, Metrik ISO 6149-3 tishli, JIC erkak 74 konus, Komatsu metrik 60 konus, NPT erkak, SAE ORB ISO 11926-3 qismlari, dumba payvandlash trubkasi, JIC ayol 37cone, ORFS ayol va boshqalar.

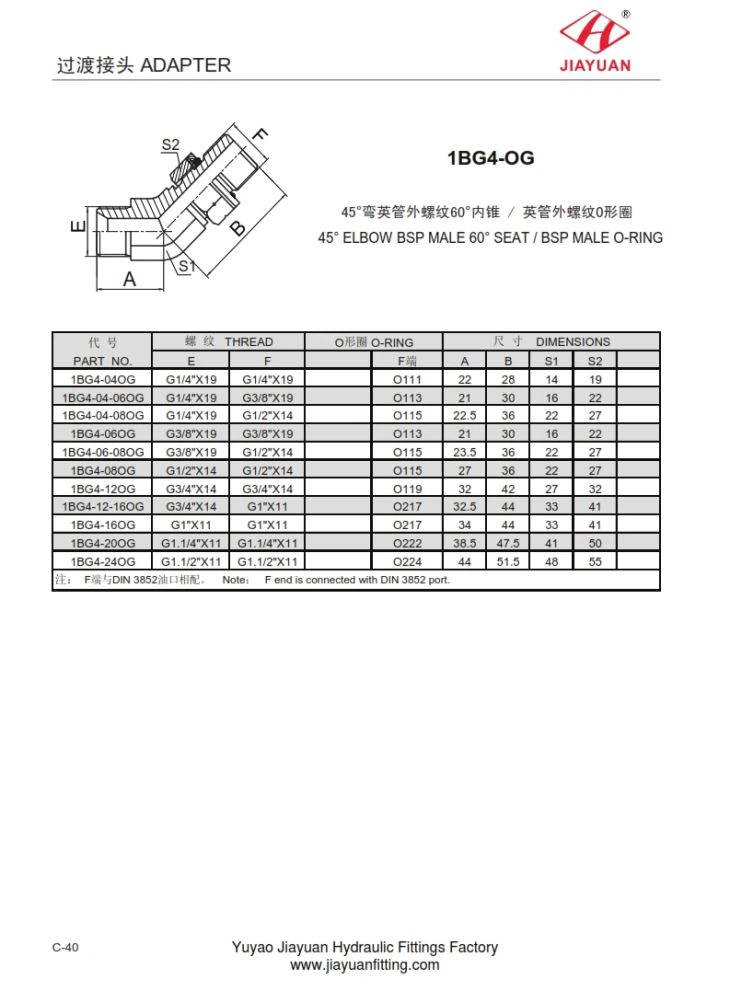

1BG4-OG 45 ° ELBOW BSP MALE 60 ° SEAT / BSP MALE O-RING o'lchamlari sxemasi quyidagicha:
PA RT N O | T HR EA D | O- RING | DIM E N S I O NS | ||||||
E | F | F | A | B | S 1 | S 2 | |||
1 B G 4 - 04 O G | G 1/4 " X 19 | G 1/4 " X 19 | O 111 | 22 | 28 | 14 | 19 | ||
1 B G 4 - 04 - 06 O G | G 1/4 " X 19 | G 3/8 " X 19 | O 113 | 21 | 30 | 16 | 22 | ||
1 B G 4 - 04 - 08 O G | G 1/4 " X 19 | G 1/2 " X 14 | O 115 | 22.5 | 36 | 22 | 27 | ||
1 B G 4 - 06 O G | G 3/8 " X 19 | G 3/8 " X 19 | O 113 | 21 | 30 | 16 | 22 | ||
1 B G 4 - 06 - 08 O G | G 3/8 " X 19 | G 1/2 " X 14 | O 115 | 23.5 | 36 | 22 | 27 | ||
1 B G 4 - 08 O G | G 1/2 " X 14 | G 1/2 " X 14 | O 115 | 27 | 36 | 22 | 27 | ||
1 B G 4 - 12 O G | G 3/4 " X 14 | G 3/4 " X 14 | O 119 | 32 | 42 | 27 | 32 | ||
1 B G 4 - 12 - 16 O G | G 3/4 " X 14 | G 1 " X 11 | O 217 | 32.5 | 44 | 33 | 41 | ||
1 B G 4 - 16 O G | G 1 " X 11 | G 1 " X 11 | O 217 | 34 | 44 | 33 | 41 | ||
1 B G 4 - 20 O G | G 1.1 / 4 " X 11 | G 1.1 / 4 " X 11 | O 222 | 38.5 | 47.5 | 41 | 50 ga teng | ||
1 B G 4 - 24 O G | G 1.1 / 2 " X 11 | G 1.1 / 2 " X 11 | O 224 | 44 | 51.5 | 48 | 55 | ||
