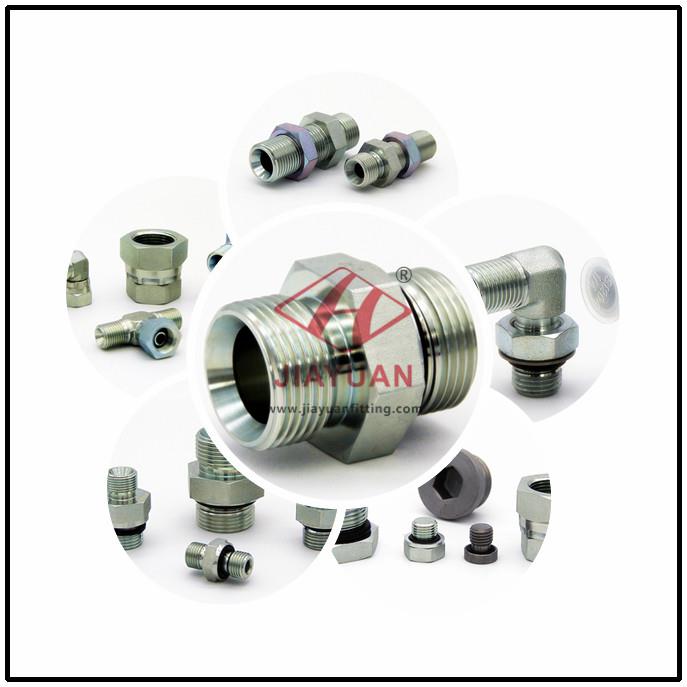

BSP erkak konusning muhrlangan muhri
BSP armaturalari katalogi Buyuk Britaniyada, Irlandiyada, Kanada, AQShda keng tarqalgan.
Barcha BSP 60 konusning qismlari ISO 8434-6 standartiga teng BS5200 bilan izohlanadi.
BSPP ip o'lchov jadvalining o'lchamlari G 1/8, G1 / 4, G1 / 2, G3 / 4, G3 / 8, G5 / 8, G1, G1-1 / 4, G1-1 / 2, G2, G2- 1/2, G3 va boshqalar.
BSP - 55 daraja ip shaklidagi britaniyalik standart quvur.
BSPP mavzusi ISO 228 va AS 1722.2 standartlariga muvofiq keladi.
BSPP tsilindrni ko'plab muhrlash turlariga yo'naltiradi, masalan, BSPP 60 ° konusning o'rindiqqa ulagichi, yopishtirilgan muhr bilan BSPP porti, ED muhri bilan BSPP porti, BSPP oring + ushlab turuvchi halqa G turi, BSPP o-ring sozlanishi piyoz H turi, BSPP chiqib ketish yuzi. muhr B turi.
BSPP trubkasi moslash moslamalari BSPT erkak, ORFS erkak, Metrik ISO 6149-3 tishli, JIC erkak 74 konus, Komatsu metrik 60 konus, NPT erkak, SAE ORB ISO 11926-3 qismlari, dumba payvandlash trubkasi, JIC ayol 37cone, ORFS ayol va boshqalar.

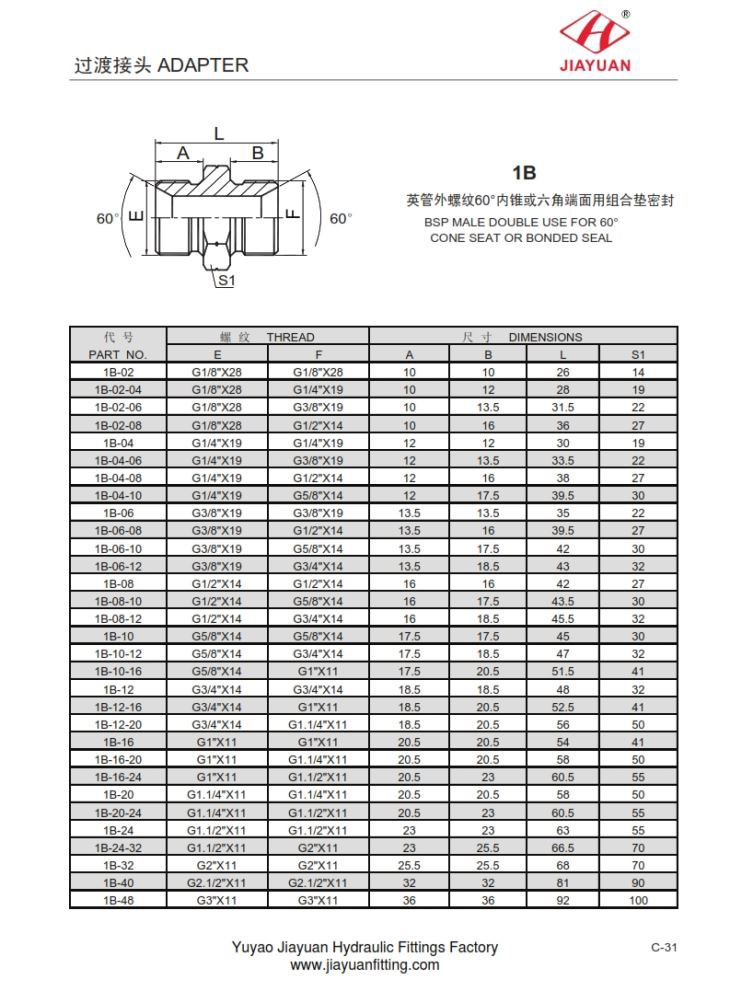

1B BSP BOSHQA QO'ShIMChA 60 ° QON YO'Q QO'ShIMChA QO'LLANILGAN YoKI FOYDALANUVChI FITITALAR o'lchamlari sxemasi quyidagicha:
PA RT N O. | T HR EA D | DIM E N S I O NS | ||||
E | F | A | B | L | S 1 | |
1 B - 02 | G 1/8 " X 28 | G 1/8 " X 28 | 10 | 10 | 26 | 14 |
1 B - 02 - 04 | G 1/8 " X 28 | G 1/4 " X 19 | 10 | 12 | 28 | 19 |
1 B - 02 - 06 | G 1/8 " X 28 | G 3/8 " X 19 | 10 | 13 .5 | 31 .5 | 22 |
1 B - 02 - 08 | G 1/8 " X 28 | G 1/2 " X 14 | 10 | 16 | 36 | 27 |
1 B - 04 | G 1/4 " X 19 | G 1/4 " X 19 | 12 | 12 | 30 | 19 |
1 B - 04 - 06 | G 1/4 " X 19 | G 3/8 " X 19 | 12 | 13 .5 | 33 .5 | 22 |
1 B - 04 - 08 | G 1/4 " X 19 | G 1/2 " X 14 | 12 | 16 | 38 | 27 |
1 B - 04 - 10 | G 1/4 " X 19 | G 5/8 " X 14 | 12 | 17 .5 | 39 .5 | 30 |
1 B - 06 | G 3/8 " X 19 | G 3/8 " X 19 | 13 .5 | 13 .5 | 35 | 22 |
1 B - 06 - 08 | G 3/8 " X 19 | G 1/2 " X 14 | 13 .5 | 16 | 39 .5 | 27 |
1 B - 06 - 10 | G 3/8 " X 19 | G 5/8 " X 14 | 13 .5 | 17 .5 | 42 | 30 |
1 B - 06 - 12 | G 3/8 " X 19 | G 3/4 " X 14 | 13 .5 | 18 .5 | 43 | 32 |
1 B - 08 | G 1/2 " X 14 | G 1/2 " X 14 | 16 | 16 | 42 | 27 |
1 B - 08 - 10 | G 1/2 " X 14 | G 5/8 " X 14 | 16 | 17 .5 | 43 .5 | 30 |
1 B - 08 - 12 | G 1/2 " X 14 | G 3/4 " X 14 | 16 | 18 .5 | 45 .5 | 32 |
1 B - 10 | G 5/8 " X 14 | G 5/8 " X 14 | 17 .5 | 17 .5 | 45 | 30 |
1 B - 10 - 12 | G 5/8 " X 14 | G 3/4 " X 14 | 17 .5 | 18 .5 | 47 | 32 |
1 B - 10 - 16 | G 5/8 " X 14 | G 1 " X 11 | 17 .5 | 20 .5 | 51 .5 | 41 |
1 B - 12 | G 3/4 " X 14 | G 3/4 " X 14 | 18 .5 | 18 .5 | 48 | 32 |
1 B - 12 - 16 | G 3/4 " X 14 | G 1 " X 11 | 18 .5 | 20 .5 | 52 .5 | 41 |
1 B - 12 - 20 | G 3/4 " X 14 | G 1.1 / 4 " X 11 | 18 .5 | 20 .5 | 56 | 50 ga teng |
1 B - 16 | G 1 " X 11 | G 1 " X 11 | 20 .5 | 20 .5 | 54 | 41 |
1 B - 16 - 20 | G 1 " X 11 | G 1.1 / 4 " X 11 | 20 .5 | 20 .5 | 58 | 50 ga teng |
1 B - 16 - 24 | G 1 " X 11 | G 1.1 / 2 " X 11 | 20 .5 | 23 | 60 .5 | 55 |
1 B - 20 | G 1.1 / 4 " X 11 | G 1.1 / 4 " X 11 | 20 .5 | 20 .5 | 58 | 50 ga teng |
1 B - 20 - 24 | G 1.1 / 4 " X 11 | G 1.1 / 2 " X 11 | 20 .5 | 23 | 60 .5 | 55 |
1 B - 24 | G 1.1 / 2 " X 11 | G 1.1 / 2 " X 11 | 23 | 23 | 63 | 55 |
1 B - 24 - 32 | G 1.1 / 2 " X 11 | G 2 " X 11 | 23 | 25 .5 | 66 .5 | 70 |
1 B - 32 | G 2 " X 11 | G 2 " X 11 | 25 .5 | 25 .5 | 68 | 70 |
1 B - 40 | G 2.1 / 2 " X 11 | G 2.1 / 2 " X 11 | 32 | 32 | 81 | 90 |
1 B - 48 | G 3 " X 11 | G 3 " X 11 | 36 | 36 | 92 | 100 ga |
