60 darajali konstruktsiyali BSPP iplarining turlari: o-ringli yoki erkaksiz;
BSPP armatura katalogining standarti ISO 8434-6 va BS 5200 standartlariga asoslangan.
60 daraja konusning ulanishi uchun iplar ISO 228-1 ga mos keladigan BSPP hisoblanadi.
Shlangi suyuqlik kuchi va umumiy foydalanish uchun metall naychali ulanishlar.
Jiayuan, shuningdek, zanglamaydigan po'latdan yasalgan BSP armatura, brass bsp quvur qismlari, bsp shlangli armatura va boshqalarni taklif qilishi mumkin.

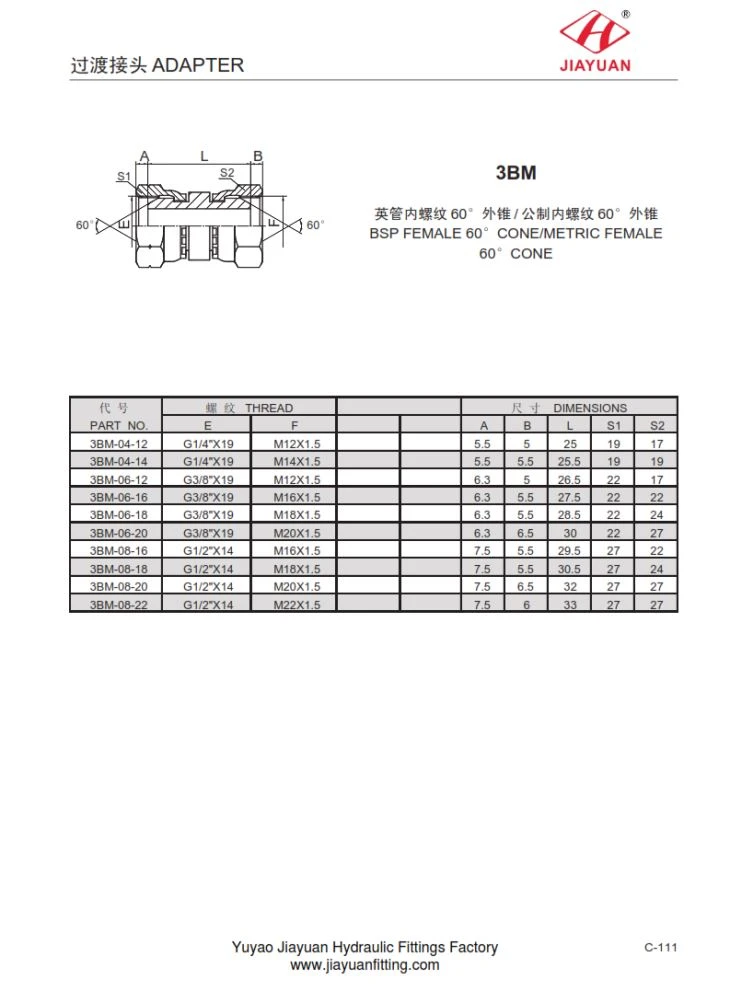

3BM BSP FEMALE 60 ° CONE / METRIK MENING 60 ° CONE ulash ulagichining o'lchamlari quyidagicha:
QISM YO'Q. | XAVF | O'LCHAMLARI | |||||
E | F | A | B | L | S1 | S2 | |
3BM-04-12 | G1 / 4 "X19 | M12X1.5 | 5.5 | 5 | 25 | 19 | 17 |
3BM-04-14 | G1 / 4 "X19 | M14X1.5 | 5.5 | 5.5 | 25.5 | 19 | 19 |
3BM-06-12 | G3 / 8 "X19 | M12X1.5 | 6.3 | 5 | 26.5 | 22 | 17 |
3BM-06-16 | G3 / 8 "X19 | M16X1.5 | 6.3 | 5.5 | 27.5 | 22 | 22 |
3BM-06-18 | G3 / 8 "X19 | M18X1.5 | 6.3 | 5.5 | 28.5 | 22 | 24 |
3BM-06-20 | G3 / 8 "X19 | M20X1.5 | 6.3 | 6.5 | 30 | 22 | 27 |
3BM-08-16 | G1 / 2 "X14 | M16X1.5 | 7.5 | 5.5 | 29.5 | 27 | 22 |
3BM-08-18 | G1 / 2 "X14 | M18X1.5 | 7.5 | 5.5 | 30.5 | 27 | 24 |
3BM-08-20 | G1 / 2 "X14 | M20X1.5 | 7.5 | 6.5 | 32 | 27 | 27 |
3BM-08-22 | G1 / 2 "X14 | M22X1.5 | 7.5 | 6 | 33 | 27 | 27 |
